QGB Gear Pump Series

Scan With Your Mobile Phone

Browse：79
Product Introduction：
The main parts of the QGB series internal gear pump are a pair of gears, consisting of an arc gear and a cycloidal gear. The internal gear pump has advanta...

The main parts of the QGB series internal gear pump are a pair of gears, consisting of an arc gear and a cycloidal gear. The internal gear pump has advantages such as low noise, low flow pulsation, good suction performance, insensitivity to impurities, reliable operation with a long service life, and ease of maintenance and repair. It is particularly suitable for transporting fluids with high precision metering requirements.

High viscosity media, and is also suitable for transporting various liquids without solid particles (or solid particles ≤0.08mm), and can be used as a lubricating oil pump, fuel pump, infusion pump, and hydraulic pump, etc.

It is widely used in industries such as petroleum, chemical, pharmaceutical, food, textile, daily chemical, and highway asphalt construction.

The QGB series internal gear pump produced by our company is developed and designed based on the characteristics of high viscosity media. The cycloidal gear, arc gear, pump body, and other components are processed using machining centers, ensuring high processing accuracy and a volumetric efficiency of up to 90%. The maximum working temperature is ≤350℃. Compared with peers in the industry, it has advantages such as a very low relative sliding speed of the gear pair, low wear, low noise, strong suction capability, high discharge pressure, and compact structure.

Model Model      Parameters  Parameter	Flow Rate Flow Rate (L/min)	Pressure Pressure (MPa)	Rotate Speed Rotate Speed (r/min)	NPSHr NPSHr (m)	Inlet and Outlet Size Inlet and Outlet Size (mm)	Motor Model and Power Motor Model and Power (kW)	Medium Temperature Medum Temperature (℃)	Transmission Distance Transmision Distance
								(m)
QGB200/0.6	200	0.6	710	3	40	Y2-132M-8/3	300	60
QGB230/1.0	230	1.0	388	2.5	50	Y2-132M-4/7.5	300	100
QGB270/0.8	270	0.8				Y2-132M2-6/5.5	300	80
QGB310/0.6	310	0.6				Y2-132M2-6/5.5	300	60
QGB320/1.0	320	1.0	584	3		Y2-160M-4/11	300	100
QGB360/0.8	360	0.8				Y2-132M-4/7.5	300	80
QGB400/0.6	400	0.6				Y2-132M2-6/5.5	300	60
QGB420/1.0	420	1.0	388	2.5	80	Y2-160L-6/11	300	100
QGB450/0.8	450	0.8				Y2-160L-6/11	300	80
QGB480/0.6	480	0.6				Y2-160M-6/7.5	300	60
QGB600/1.0	600	1.0	584	3		Y2-180M-4/18.5	300	100
QGB640/0.8	640	0.8				Y2-160L-4/15	300	80
QGB680/0.6	680	0.6				Y2-160L-6/11	300	60
QGB540/1.0	540	1.0	388	2.5	100	Y2-180M-4/18.5	300	100
QGB580/0.8	580	0.8				Y2-180L-6/15	300	80
QGB620/0.6	620	0.6				Y2-160L-6/11	300	60
QGB870/1.0	870	1.0	584	3		Y2-180L-4/22	300	100
QGB920/0.8	920	0.8				Y2-180M-4/18.5	300	80
QGB950/0.6	950	0.6				Y2-180L-6/15	300	60
QGB770/1.0	770	1.0	200		125	Y2-180L-4/22	300	100
QGB800/0.8	800	0.8				Y2-160L-4/15	300	80
QGB830/0.6	830	0.6				Y2-160L-4/15	300	60
QGB1150/1.0	1150	1.0	300			Y2-200L-4/30	300	100
QGB1200/0.8	1200	0.8				Y2-180L-4/22	300	80
QGB1230/0.6	1230	0.6				Y2-180M-4/18.5	300	60
QGB1600/0.6	1600	0.6	388			Y2-200L-4/30	300	60

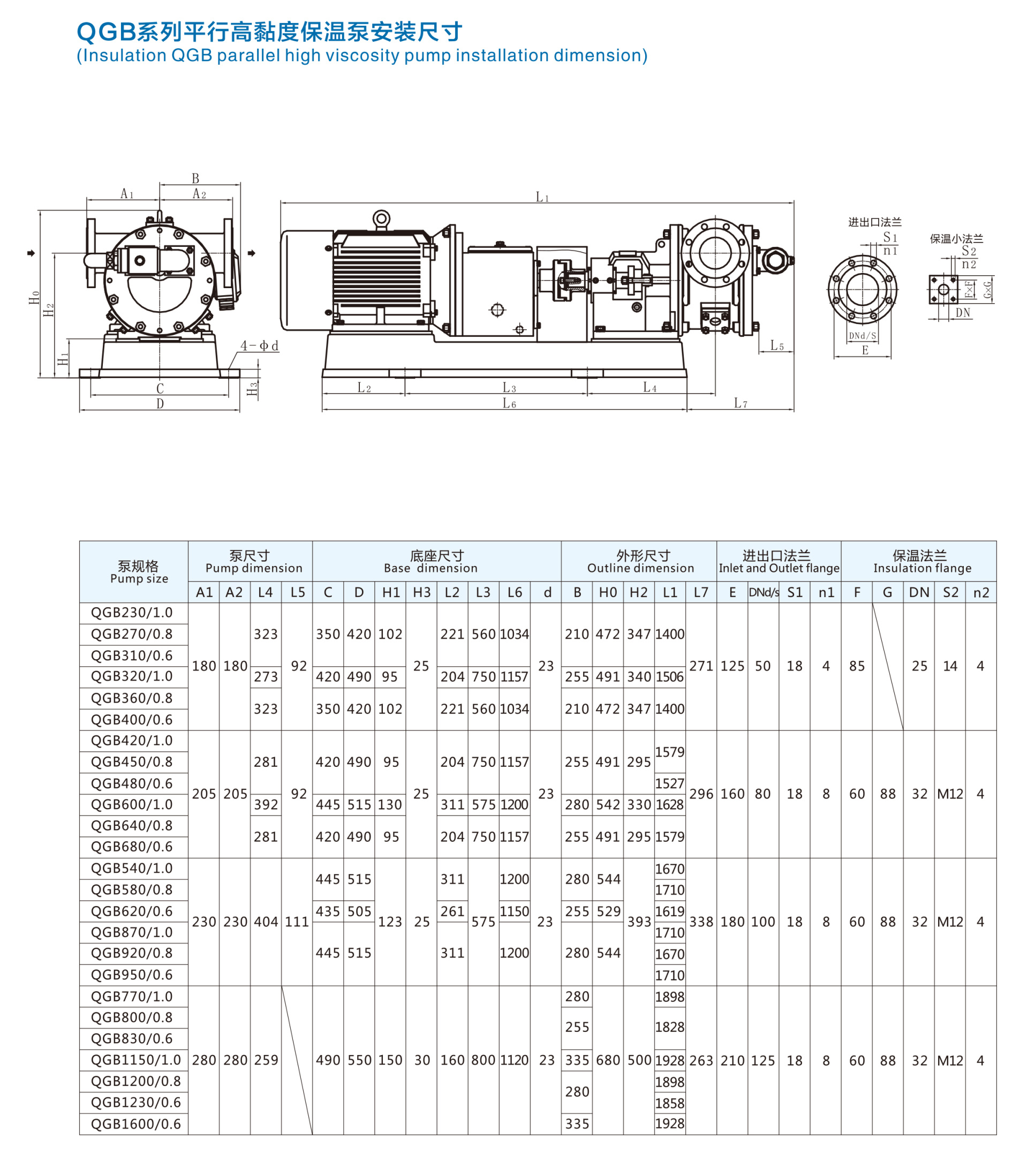

a simple structure and stable performance. Both the front and rear of the pump are equipped with insulation chambers, allowing gas or liquid to be used as a heat carrier to heat and insulate the pump, making it particularly suitable for transporting high-viscosity media. This series of insulated gear pumps has two inlet and outlet configurations: left inlet and right outlet, and right inlet and left outlet, with the same installation dimensions and strong interchangeability.
