BJ643H Series Pneumatic Insulated Three-Way Valve

Scan With Your Mobile Phone

Browse：95
Product Introduction：
[gallery ids="121,118,115"] Based on the characteristics of high viscosity asphalt, the company has developed the BJ643H series pneumatic insulation three-...

Based on the characteristics of high viscosity asphalt, the company has developed the BJ643H series pneumatic insulation three-way valve for transporting high-temperature asphalt, incorporating advanced ideas from both domestic and international sources, to significantly improve the production efficiency of asphalt systems in asphalt mixing equipment in China.



The connection structure of the BJ643H series pneumatic insulation three-way valve adopts a flange connection, and the valve body material is cast steel. The valve core is made of aluminum alloy, which automatically adjusts and repairs according to the stainless steel sealing surface of the valve body during use, thus extending its service life. The cylinder and piston are custom-designed according to the valve parameters to ensure optimal opening and closing of the valve, further extending its service life. The column and valve rod are made of stainless steel to ensure that the valve is not corroded in harsh environments and can be used normally. The spring installed on the piston rod not only ensures the valve operates between 0.3MPa and 1.0MPa pressure but also provides a buffering effect, protecting the valve core and piston, while also sealing the oil return circuit in case of air loss in the cylinder.



The BJ643H series pneumatic insulation three-way valve utilizes the piston to form two sealing chambers in the cylinder, achieving the opening and closing of the valve through the pressure difference between the two sealing chambers. Additionally, limit switches are equipped on the upper and lower covers of the cylinder, which not only ensure the displacement of the valve core but also realize automated control.

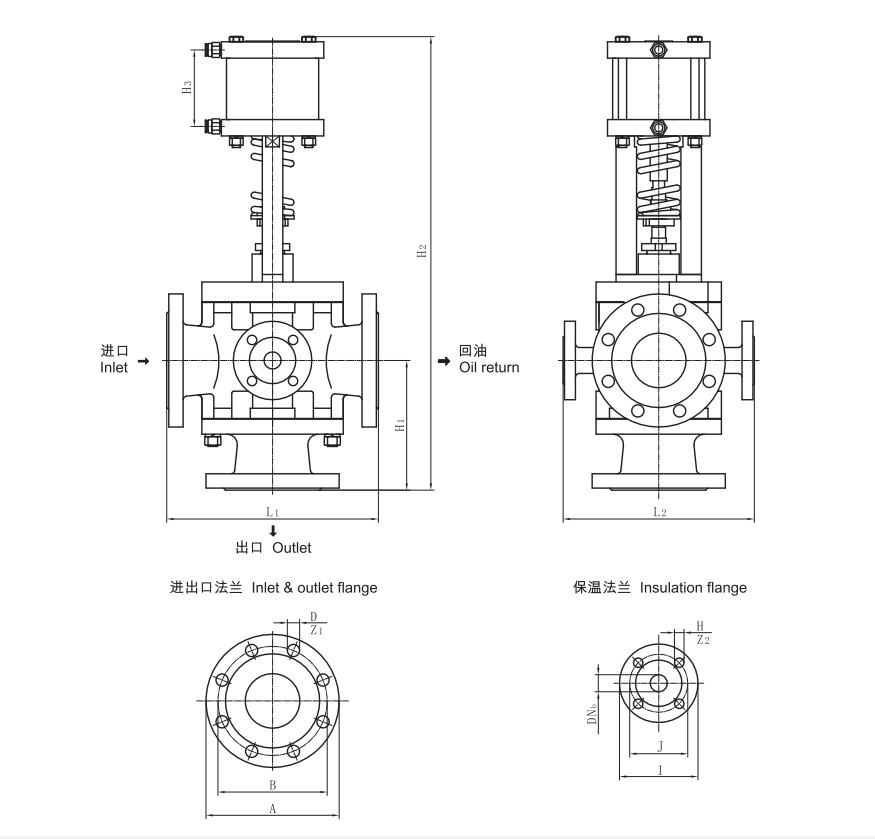

Nominal diameter DN Inside nominal diameter	Installation size Installationsize					Inlet and outlet flange Inlet and outlet flange PN16 GB/T17241.6				Insulation flange Insulation flange PN16 GB/T17241.6
	L1	L2	H1	H2	H3	A	B	D	Z1	DNb	I	J	H	Z2
50	230	230	206	651	104	160	125	19	4	20	105	75	14	4
65	290	260	180	650	114	180	145	19	4	25	115	85	14	4
80	310	280	190	665	112	195	160	19	8	25	115	85	14	4
100	350	300	200	716	122	215	180	19	8	25	115	85	14	4
125	400	350	230	856	144	245	210	19	8	25	115	85	14	4
150	440	380	270	1143	182	280	240	23	8	32	135	100	19	4
